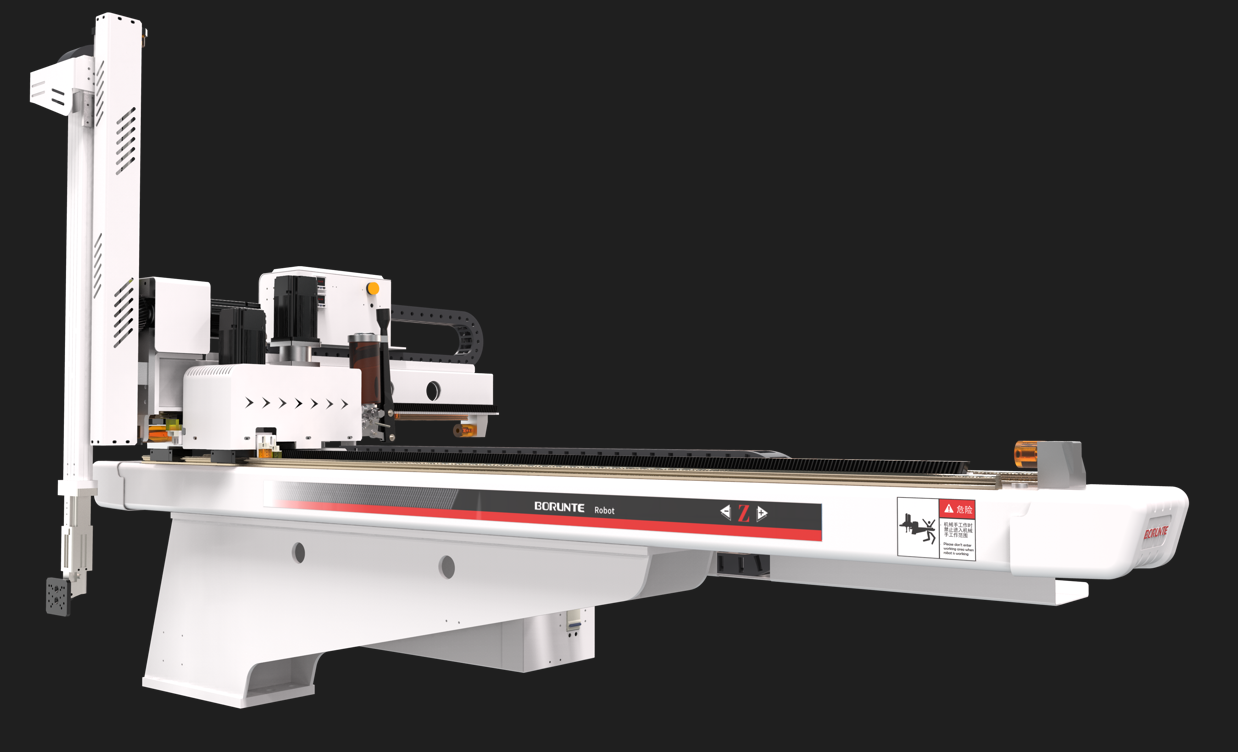

BRTNG09WSS3P/F manipulator
Three-axis AC-servo telescopic take-out manipulator with product arm for 160T–380T horizontal injection-molding machines.
Specifications and prices are confirmed with your inquiry.
Ask about this product
Saved in this browser only. Nothing is sent.
Model code
In the model code, W stands for the telescopic type, S for the product arm, and S3 for three axes driven by AC servo motors.
Motion and control
The axis drivers and the controller form one integrated system, which reduces the number of signal lines.
1 / 1
Data: BRTNG09WSS3P/F
| Power Source(KVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 3.2 | 160T-380T | AC Servo motor | two suctions two fixtures |
Values as published. Empty cells are not stated.
Data: BRTNG09WSS3P/F
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| 1500 | 600 | 950 | 2 |
Values as published. Empty cells are not stated.
Data: BRTNG09WSS3P/F
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(KG) |
| 0.68 | 4.07 | 3.2 | 300 |
Values as published. Empty cells are not stated.
