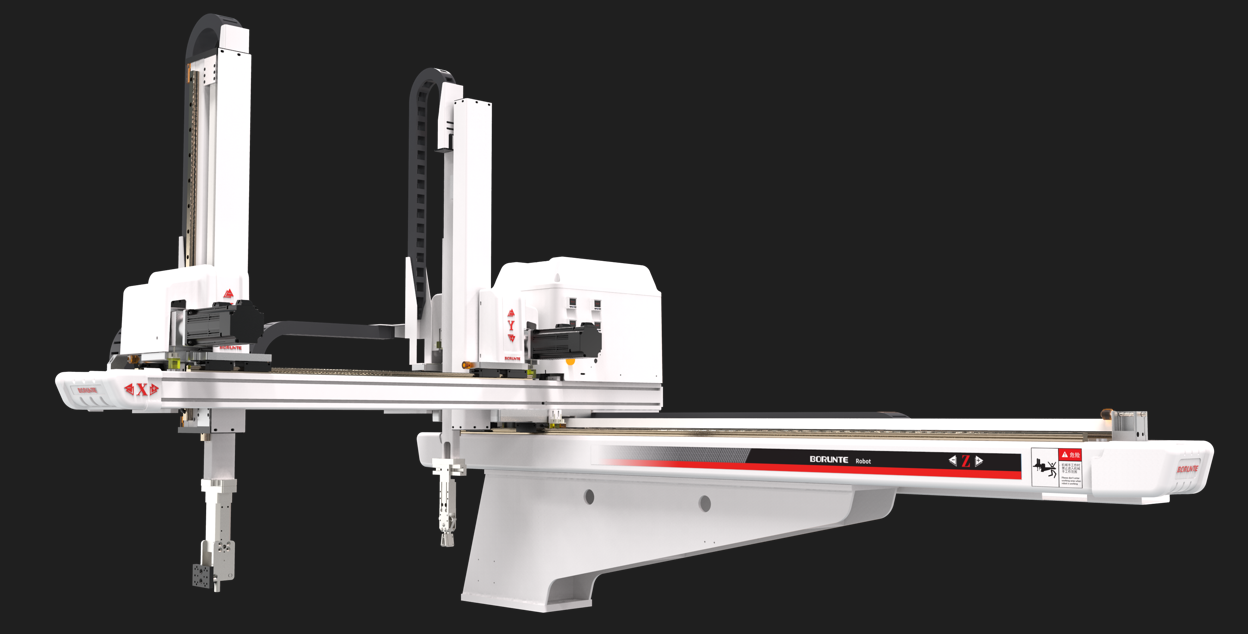

BRTR09WDS5P0/F0 manipulator
Five-axis AC-servo telescopic take-out manipulator with product arm and runner arm for 160T–320T horizontal injection-molding machines, also suited to in-mold labeling and inserting.
Specifications and prices are confirmed with your inquiry.
Ask about this product
Saved in this browser only. Nothing is sent.
Model code
In the model code, W stands for the telescopic type, D for a product arm plus a runner arm, and S5 for five axes driven by AC servo motors.
Motion and control
The axis drivers and the controller form one integrated system, which reduces the number of signal lines.
1 / 1
Data: BRTR09WDS5P0/F0
| Power Source(KVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 3.5 | 160T-320T | AC Servo motor | four suctions two fixtures |
Values as published. Empty cells are not stated.
Data: BRTR09WDS5P0/F0
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| 1500 | P:550-R:550 | 950 | 8 |
Values as published. Empty cells are not stated.
Data: BRTR09WDS5P0/F0
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(KG) |
| 1.5 | 7.03 | 4 | 300 |
Values as published. Empty cells are not stated.
