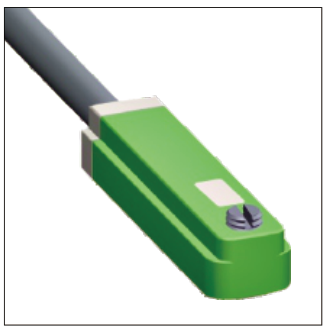

DFGE

DFGE belongs to Controls and accessories series in the Controls and accessories catalog.

Series: Controls and accessories series
Configurations: None listed; specify yours in the inquiry

DFGE · Controls and accessories

Choose a control component by its role in the equipment and the signals it must exchange. Start with supply, input and output requirements and the exact suffix model.

Comparing DFGE

For DFGE, compare these listed entries: Using voltage range: 10~30V / DC；Maximum switching current: 1~50mA. Check wiring and interface information for that variant. A shared series page does not establish interchangeability or compatibility with another component.

Parameters and where they apply

Indicator light color DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	Red LED
Leakage current DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	90μA Max.@28V
Maximum switching current DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	1~50mA
Node capacity DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	1.5W
Protection circuit DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	Surge absorption protection
Residual pressure drop DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	2.65V Max.@50mA DC
Sensitiveness DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	25~800 Gaussian
Switching frequency DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	900HZ
temperature range DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	-10°~70℃
Using voltage range DFGE / DMSE · Shared DFGE/DMSE source column; not a separate configuration	10~30V / DC
