Pemancar isyarat daya · Siri pemancar isyarat daya

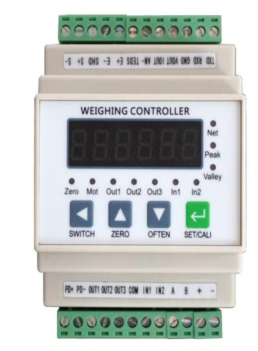

ECA-FD106-MC
ECA-FD106-MC tergolong dalam Siri pemancar isyarat daya di katalog Pemancar isyarat daya.
ECA-FD106-MC · Pemancar daya
Pemancar ialah sebahagian rantaian isyarat ukuran. Kenal pasti isyarat penderia, output diperlukan dan pengawal penerima.
Membandingkan ECA-FD106-MC
Untuk ECA-FD106-MC, bandingkan data ini: Voltan operasi: 10~30V/DC；Ketepatan paparan: 1/10000 precision 5-bit or 6-bit red digital display. Semak bekalan, format, pendawaian dan penentukuran varian tepat. Sahkan antara muka penderia dan pengawal bersama.
Parameter dan kebolehgunaannya
| Voltan operasi Model teknikal semasa | 10~30V/DC V/DC |
|---|---|
| Isyarat input Model teknikal semasa | 04~6mv/v mv/v |
| Voltan pengujaan Model teknikal semasa | 5V/DC ±2% 100mA V/DC |
| Resolusi A/D Model teknikal semasa | 24位 |
| Port output Model teknikal semasa | Choose between RS232 or RS485, and can add analog output |
| Protokol komunikasi Model teknikal semasa | Modbus RTU/ASCII/FREE Free Protocol 0-20mA/4-20mA/-10-10V/0-5V/0-10V, etc |
| Kadar penghantaran isyarat Model teknikal semasa | 1200/2400/4800/9600/19200/38400/57600/115200 |
| Keupayaan pemacu Model teknikal semasa | 6 350 Ω sensors |
| Dimensi keseluruhan Model teknikal semasa | 87.5*72*25.7mm mm |
| Isyarat pensuisan Model teknikal semasa | 3-point transistor output, 24V/14A load capacity, 2-way input V |
| Suhu operasi Model teknikal semasa | -30-60℃ ℃ |
| Kadar penukaran A/D Model teknikal semasa | 10/40/640/1280/S |
| Ketepatan paparan Model teknikal semasa | 1/10000 precision 5-bit or 6-bit red digital display |
| Tahap perlindungan Model teknikal semasa | Ip55 |
Parameter teknikal
| Working voltage | 10~30V/DC V/DC | |||||
|---|---|---|---|---|---|---|
| Input signal | 04~6mv/v mv/v | |||||
| Excitation voltage | 5V/DC ±2% 100mA V/DC | |||||
| A/D resolution | 24位 | |||||
| Output port | Choose between RS232 or RS485, and can add analog output | |||||
| Communication protocol | Modbus RTU/ASCII/FREE Free Protocol 0-20mA/4-20mA/-10-10V/0-5V/0-10V, etc | |||||
| Signal transmission rate | 1200/2400/4800/9600/19200/38400/57600/115200 | |||||
| Driving ability | 6 350 Ω sensors | |||||
| External dimensions | 87.5*72*25.7mm mm | |||||
| Switching quantity | 3-point transistor output, 24V/14A load capacity, 2-way input V | |||||
| Working temperature | -30-60℃ ℃ | |||||
| A/D conversion rate | 10/40/640/1280/S | |||||
| Display accuracy | 1/10000 precision 5-bit or 6-bit red digital display | |||||
| Protection level | Ip55 | |||||
Jadual pemilihan sumber
| Model instrumen | Model pilihan | Catatan dan keterangan | ||||
|---|---|---|---|---|---|---|
| FD106-MC | A1 | Analog signal | ||||
| TS | TEDS function | |||||
