Electric cylinders

High-precision, high-load servo electric cylinder with customizable stroke

17 models

Begin with the cylinder motion task

The series brings together EDA and EDF catalog models and separate servo-cylinder construction references. Define the required thrust, extension, speed, duty cycle and mounting envelope before reviewing a model.

Distinguish construction from model specifications

The servo-cylinder references describe motor and screw arrangements, including a turnback layout that places the motor alongside the cylinder. Use these references to discuss the arrangement; confirm motor, screw, feedback and mounting details for the actual cylinder proposal.

Continue comparing

Screen models by numbers

Numeric checks use the listed data of catalog models only.

Series information

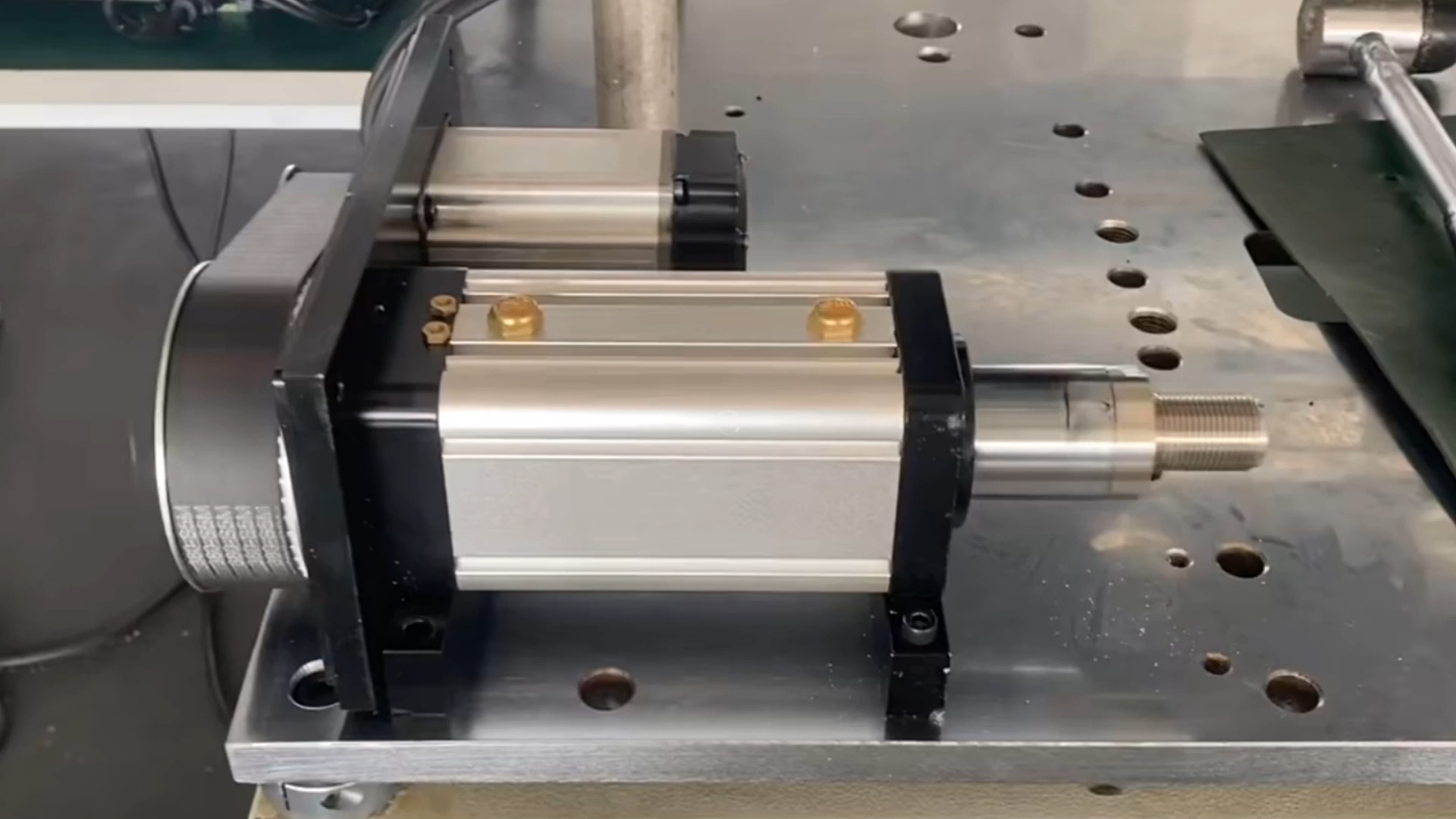

Heavy-load servo electric cylinders

Servo electric cylinders for heavy loads that combine strong driving force with precise positioning.

View product collection →
Heavy-load servo electric cylinders

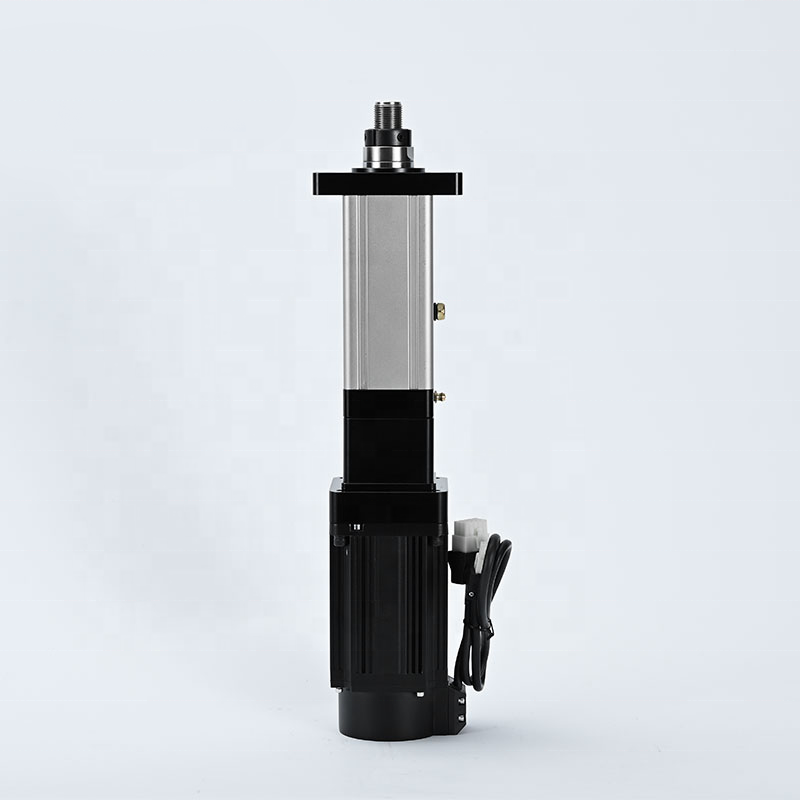

Servo electric cylinders

Electric cylinders that integrate a servo motor and screw to turn rotation into linear motion, with speed and thrust control, trapezoidal, ball or planetary-roller screws and servo, stepper, DC or AC motors. Stepper versions run without encoder feedback.

View product collection →
Servo electric cylinders

Turnback servo electric cylinders

Servo electric cylinders integrating AC servo motor, drive and ball screw. The turnback version places the motor alongside through a synchronous belt and gearbox to shorten the overall length for tight installations.

View product collection →
Turnback servo electric cylinders
