Selection guide
Compare MF and MC models.

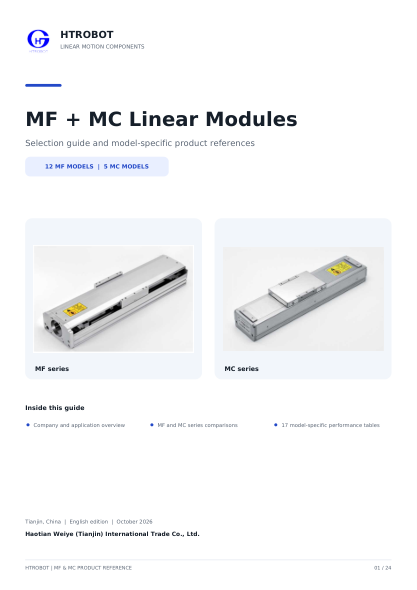

Selection guide PDF · EN · 24 pages · 10.53 MBПрименения и ресурсы
Загрузки
PDF · EN / DWG · ZIP
MF / MC manuals
Compare the models in the selection guide. Download a product sheet for specifications, or a separate drawing atlas for installation planning.
PDFs are in English (EN).

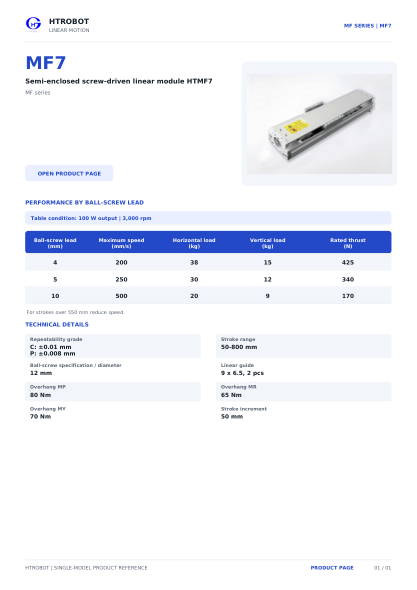

MF7
Motor power: 100 W; travel: 800 mm; lead-speed values are listed in the product PDF.

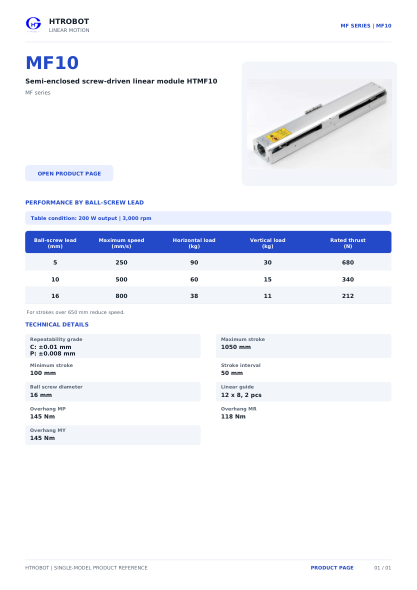

MF10
Motor power: 200 W; travel: 1050 mm; lead-speed values are listed in the product PDF.

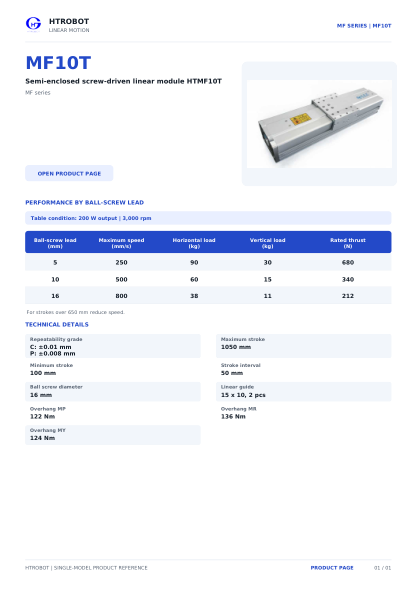

MF10T
Motor power: 200 W; travel: 1050 mm; lead-speed values are listed in the product PDF.

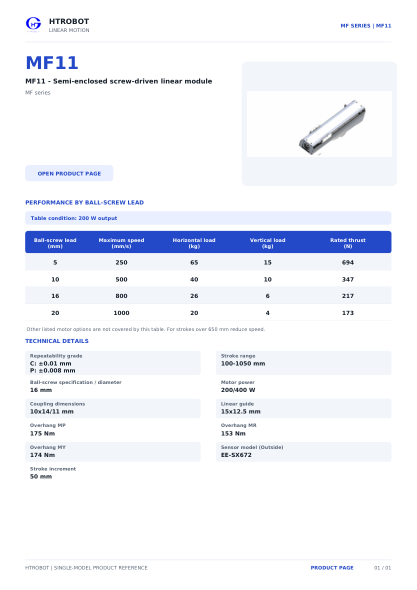

MF11
Motor power: 200/400 W; travel: 1050 mm; lead-speed values are listed in the product PDF.

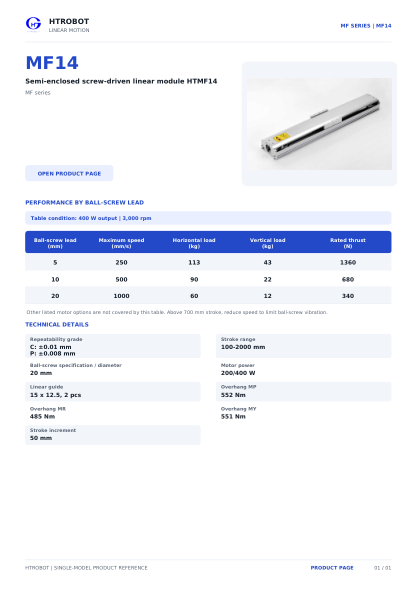

MF14
Motor power: 200/400 W; travel: 2000 mm; lead-speed values are listed in the product PDF.

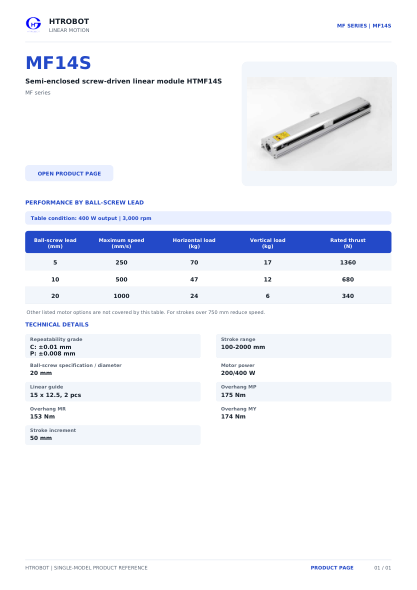

MF14S
Motor power: 200/400 W; travel: 2000 mm; lead-speed values are listed in the product PDF.
MF14T
Motor power: 200/400 W; travel: 1000 mm; lead-speed values are listed in the product PDF.

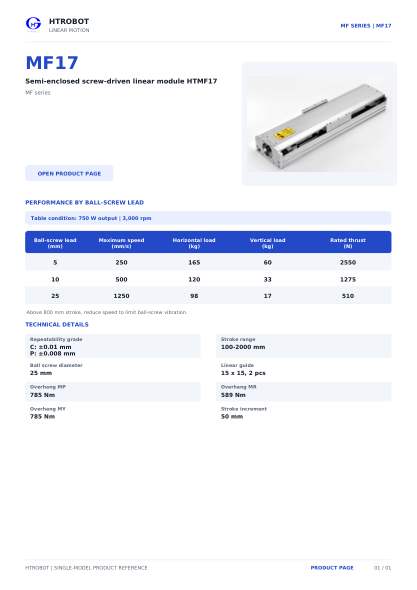

MF17
Motor power: 750 W; travel: 2000; lead-speed values are listed in the product PDF.
MF17H
Motor power: 750 W; travel: 2000 mm; lead-speed values are listed in the product PDF.

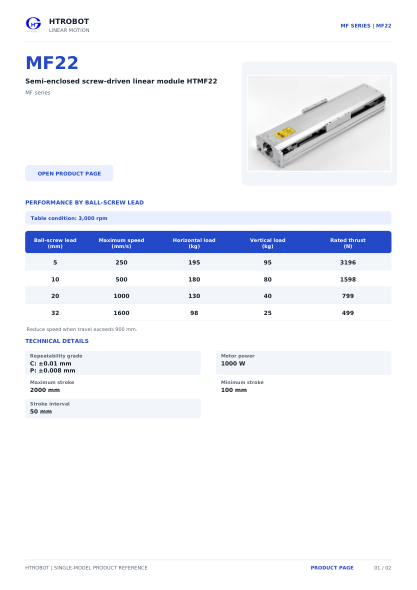

MF22
Motor power: 1000 W; travel: 2000 mm; lead-speed values are listed in the product PDF.

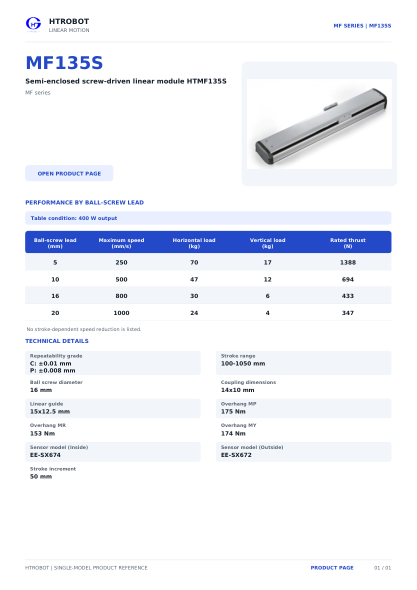

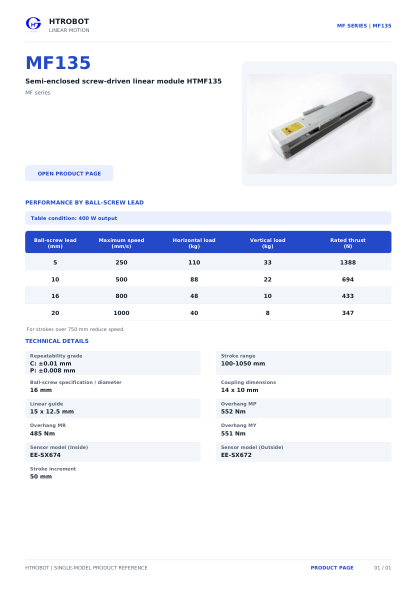

MF135
Motor power: 400 W; travel: 1050 mm; lead-speed values are listed in the product PDF.
MF135S
Motor power: 400 W; travel: 1050; lead-speed values are listed in the product PDF.

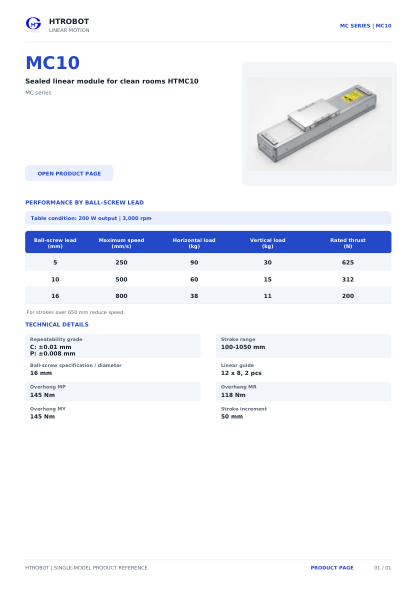

MC10
Motor power: 200 W; travel: 1050 mm; lead-speed values are listed in the product PDF.

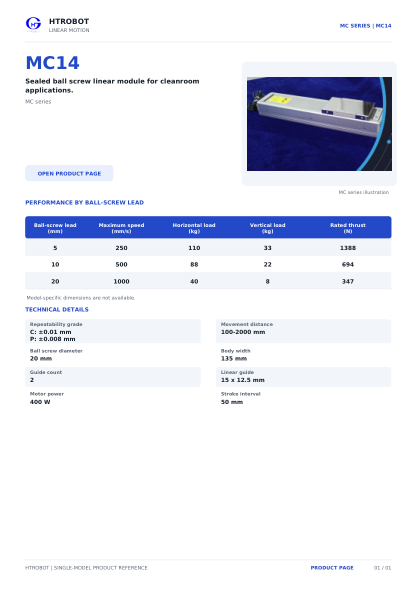

MC14
Motor power: 400 W; travel: 2000 mm; lead-speed values are listed in the product PDF.
A dimension atlas is not available for this model.

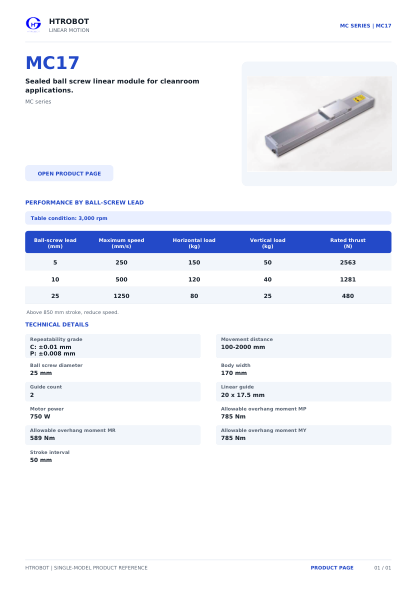

MC17
Motor power: 750 W; travel: 2000 mm; lead-speed values are listed in the product PDF.

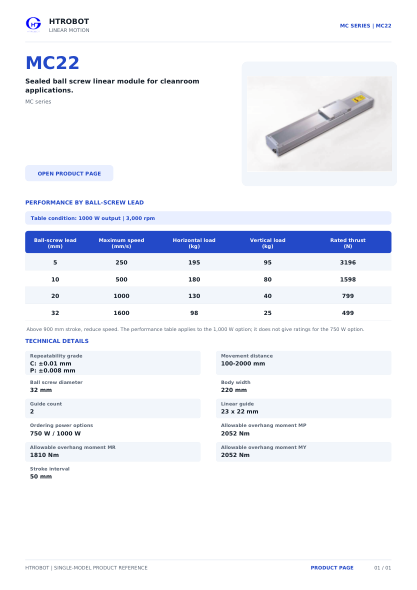

MC22
Motor power: 750 W / 1000 W; travel: 2000 mm; lead-speed values are listed in the product PDF.
MC135
Motor power: 400 W; travel: 1050 mm; lead-speed values are listed in the product PDF.
Загрузки CAD
Технические материалы

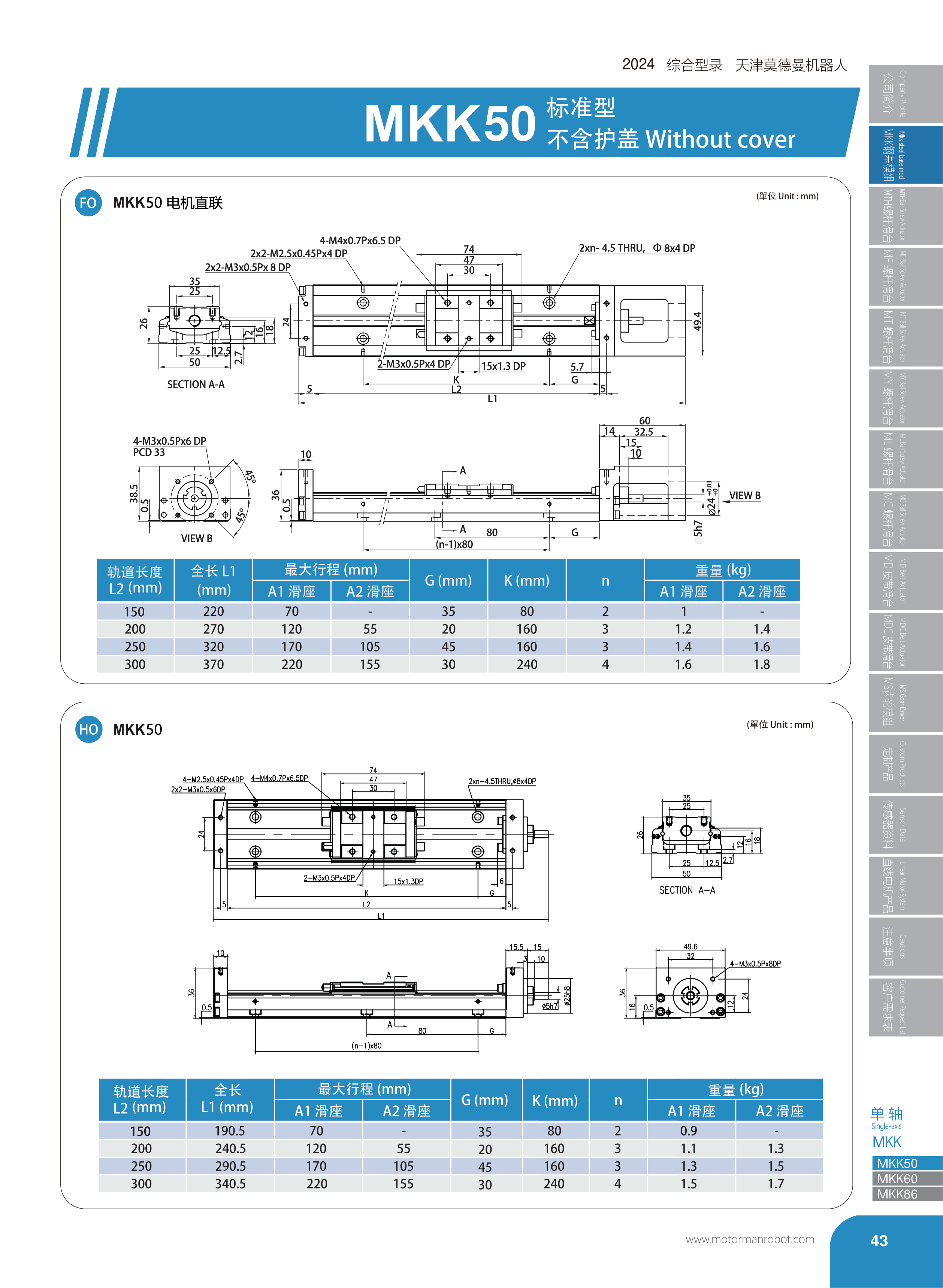

Габаритный чертёж стандартного MKK50
Ознакомьтесь с конструкцией и монтажными размерами стандартного исполнения без кожуха. При запросе подходящих CAD-материалов укажите модель и конфигурацию.
Открыть материал →
Чертежи конфигураций TK106

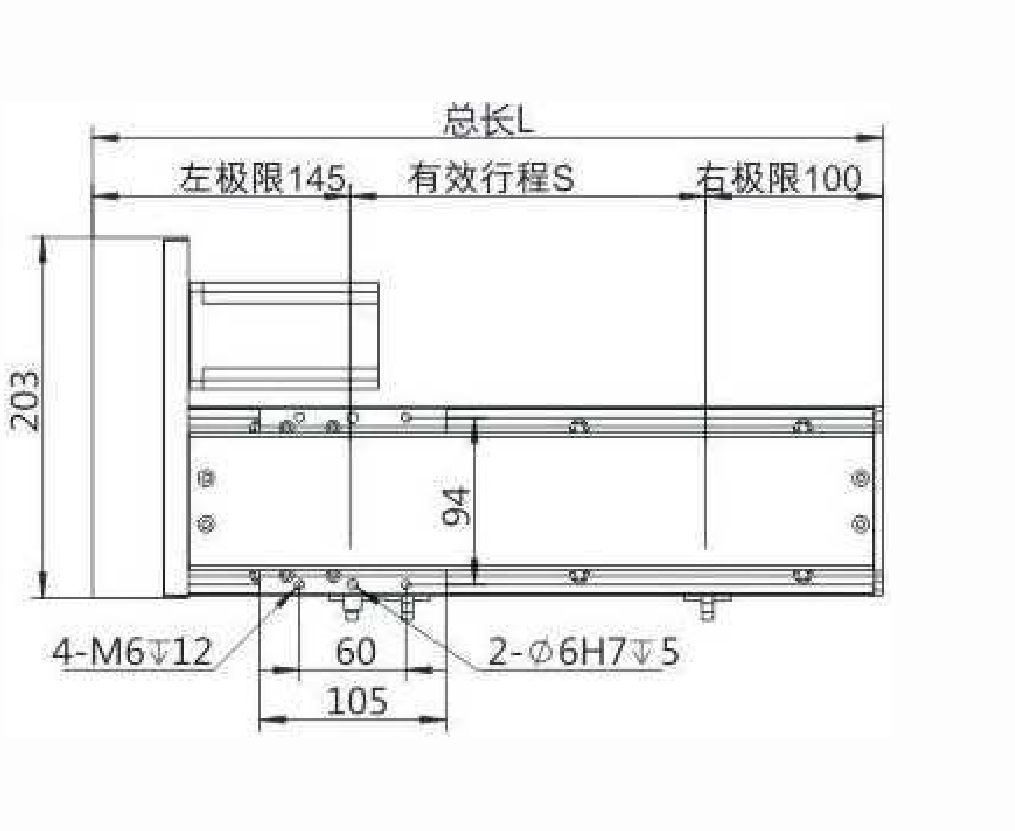

Габаритные чертежи из каталога для ориентации BL включают главный, торцевой и монтажный виды. Главный вид показан на странице TK106; полный комплект предоставляется по запросу для вашей точной конфигурации.
Открыть материал →
