MC series sealed linear modules for clean rooms

Choosing within MC series sealed linear modules for clean rooms

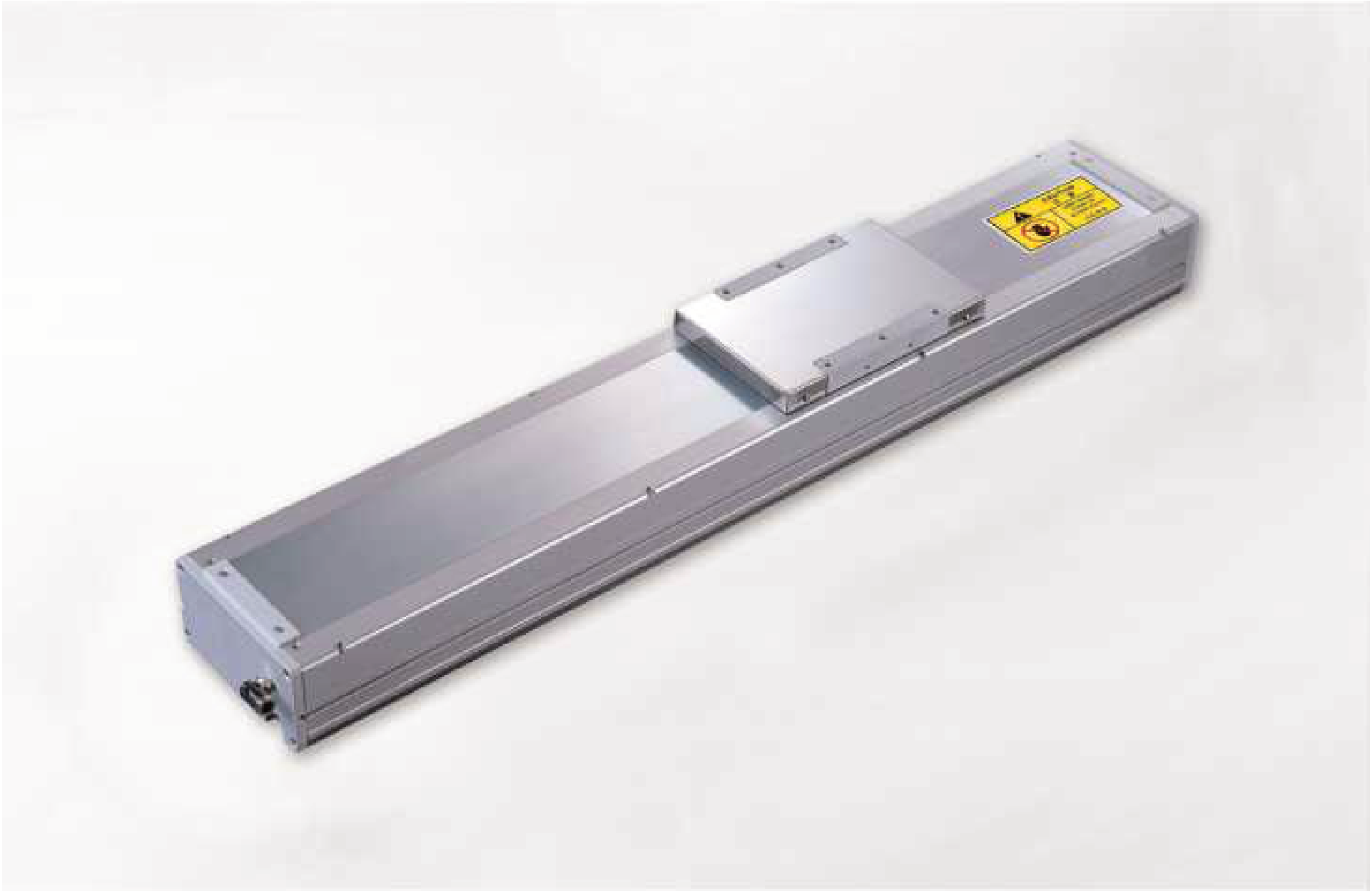

This series includes MC10, MC14, MC17, MC22 and other models. A screw-driven linear module converts rotary drive into carriage travel. For a positioning axis, compare screw lead, usable stroke and the installation space for the carriage and motor. Read positioning, load and speed under the same lead and installation conditions. For vertical motion, include holding and brake requirements in the axis proposal. Model entries to compare separately: MC10 · Maximum stroke: 1050 mm; MC14 · Maximum stroke: 2000 mm.

• Compare screw and belt drives →
• Selection help →
• MC10 →
• MC14 →

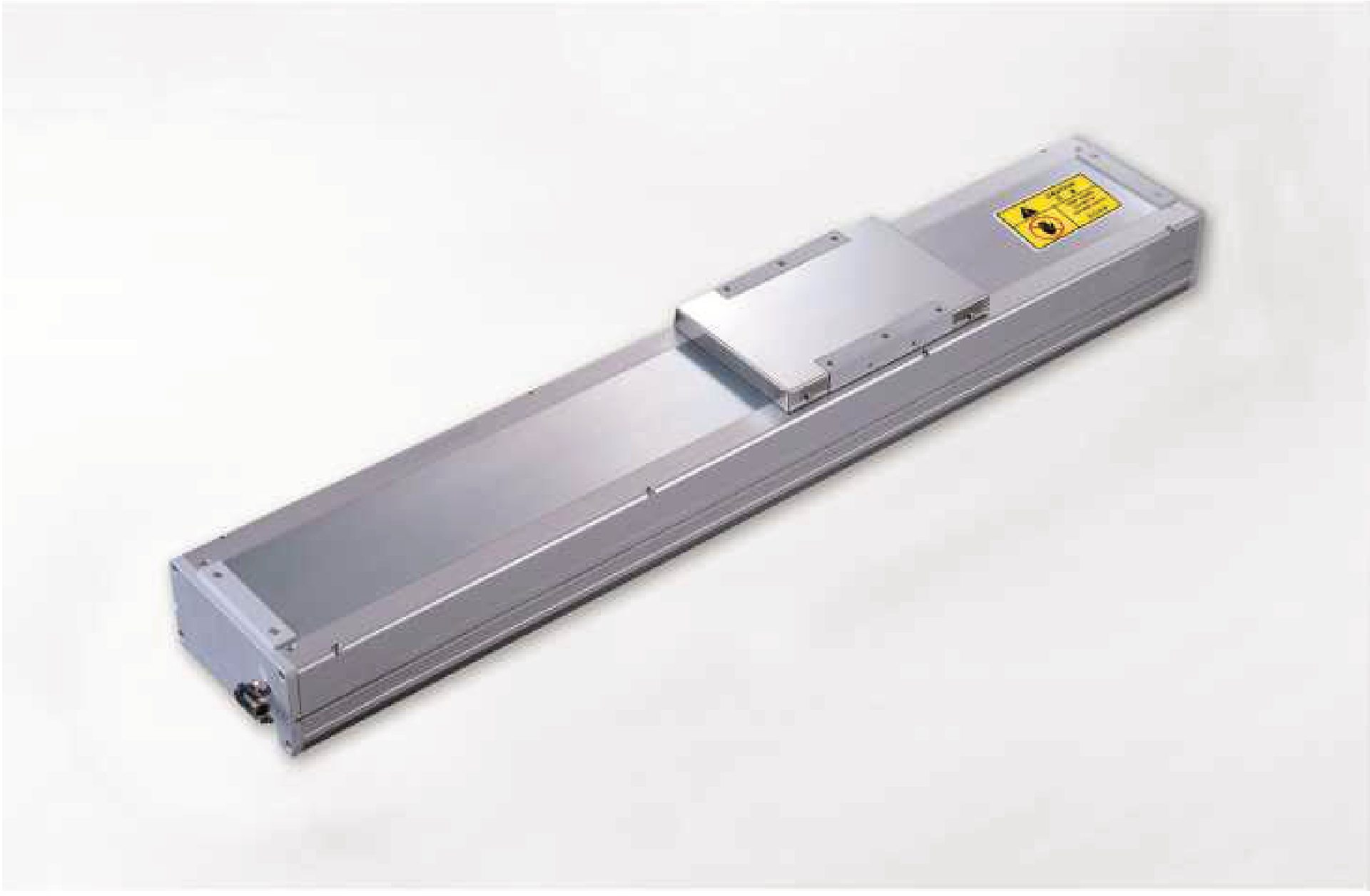

• MC17 →

MF / MC manuals

PDFs are in English (EN).
