Linear modules

19 series · 60 models · 7 products · 3 product ranges

A linear module, or single-axis linear stage, moves a load along a straight path. It transfers workpieces or adjusts inspection positions and performs repeated positioning inside a machine.

Choose a series, then compare models; or find a specific product directly.

Browse by series

Screen models by numbers

Numeric checks use the listed data of catalog models only.

Overview

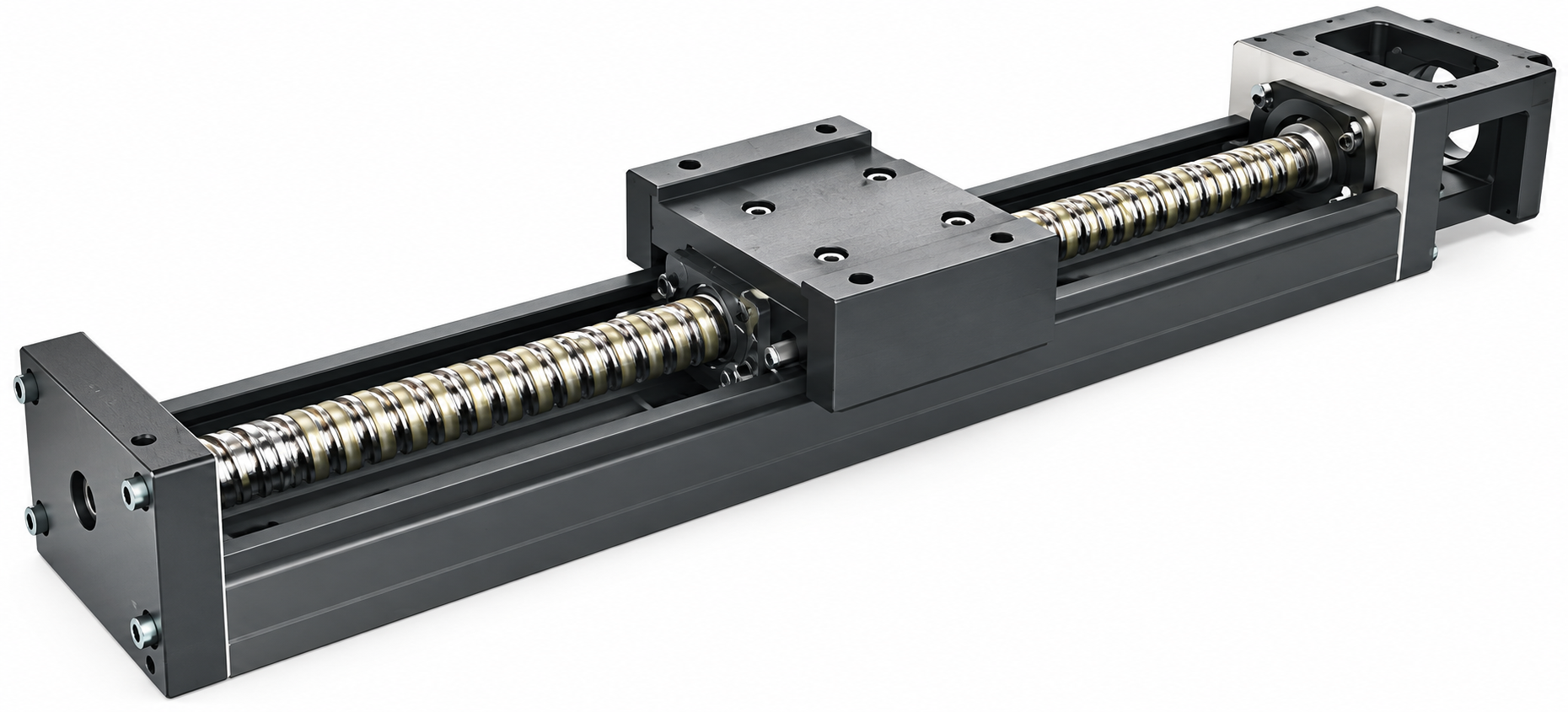

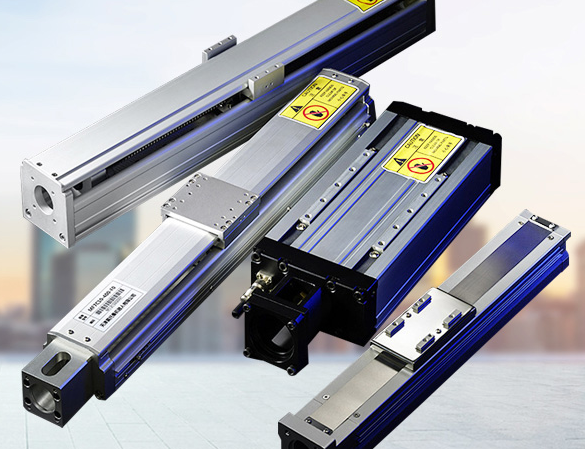

Screw-driven linear module families (MT, MF, MC, ML, MY)

Ball-screw driven linear modules of the MT, MF, MC, ML and MY families in general (C) or high (P) precision, freely combinable into two- and three-axis units.

View product collection →
Screw-driven linear module families (MT, MF, MC, ML, MY)

Types and selection

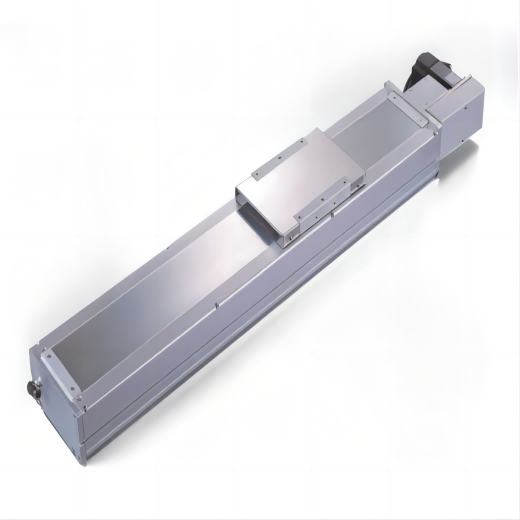

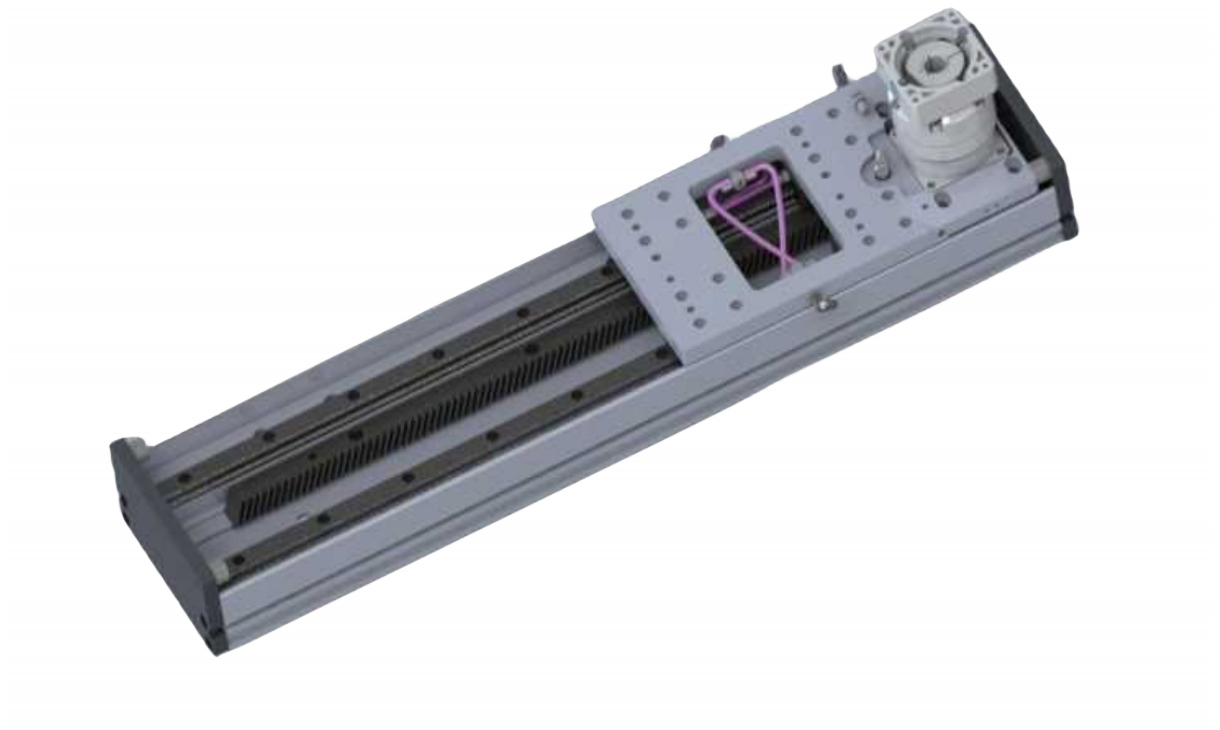

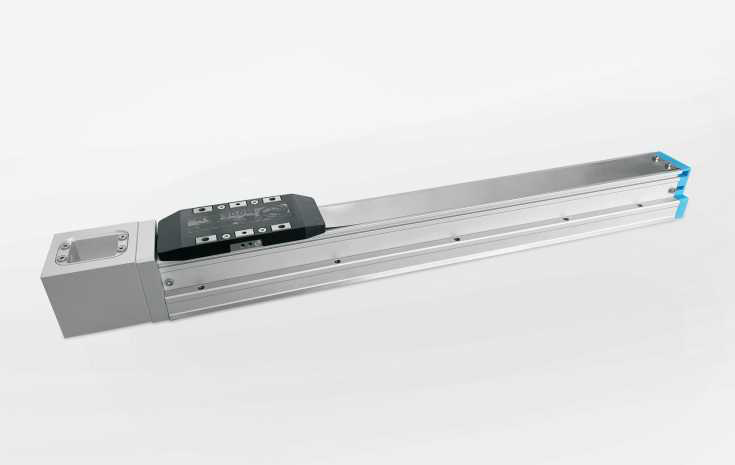

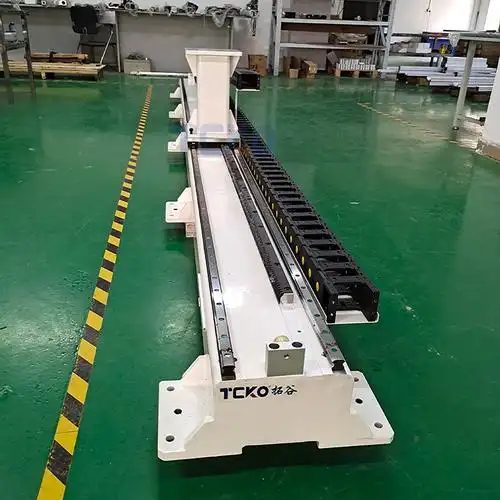

Ball screws drive through a threaded shaft, belts through a loop and rack-and-pinion drives along a rack. Robot tracks extend travel; one axis is not a full gantry. Match enclosed, embedded or telescopic layouts to space. Start with travel, load, speed and mounting direction, then compare lead, guides and dimensions for the model and configuration you need.
